304/316 Grade Stainless Steel Railing

Price 1050 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

304/316 Grade Stainless Steel Railing Specification

Product Form
Pipe and Tube

Corrosion Resistant
Yes, high resistance

Size
Customizable

Material Composition %
18-20% Chromium, 8-11% Nickel (304); 16-18% Chromium, 10-14% Nickel, 2-3% Molybdenum (316)

Diameter
19mm, 25mm, 32mm, 38mm, 50.8mm or customized

Hardness
Approx. 201 HB (304); 217 HB (316)

Recyclable
Yes

Coating Type
Uncoated, natural stainless steel

Tensile Strength
515 MPa min (304); 520 MPa min (316)

Heat Resistance
Yes

Product Name
304/316 Grade Stainless Steel Railing

Steel Type
Stainless Steel

Steel Product Type
Railing

Grade
304/316

Thickness
Available from 1.2mm to 3.0mm

Shape
Round, Square, Rectangular or Custom

Steel Standard
ASTM A240/A276 (or as per order)

Surface
Polished, Brushed, Mirror Finish

Composition
Mainly Iron, Chromium, Nickel, Manganese

Application

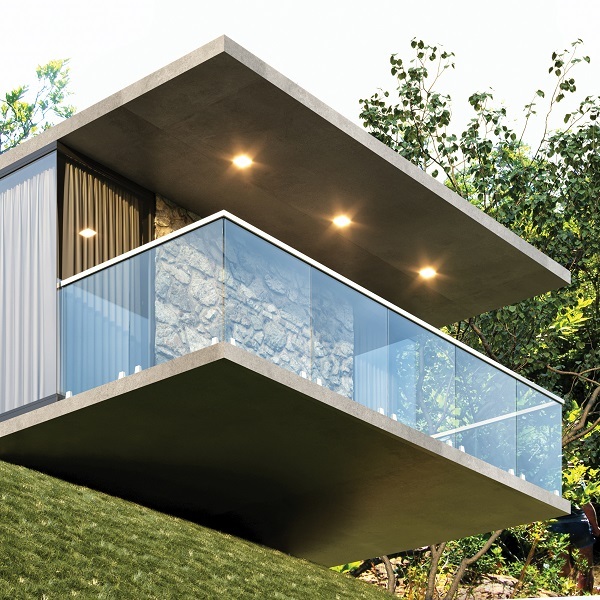

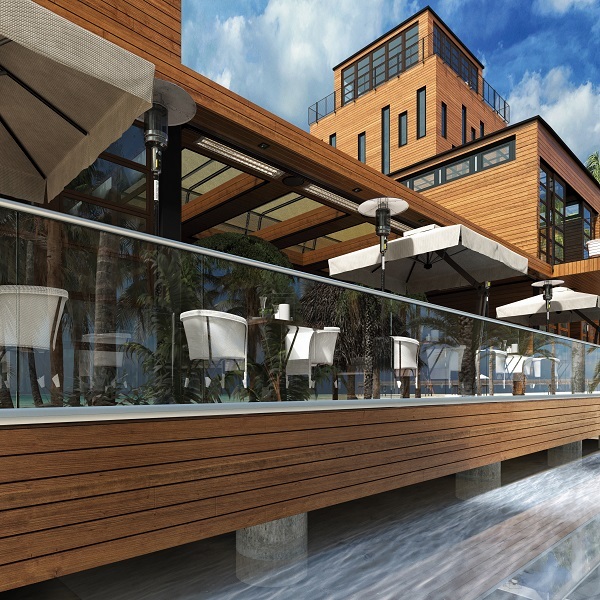

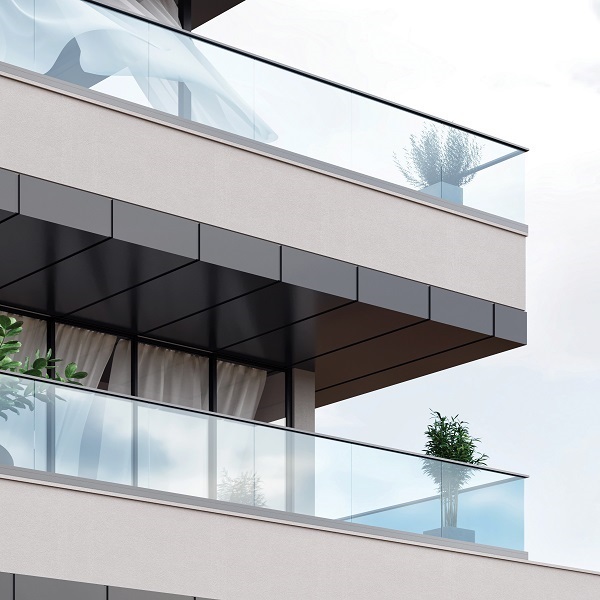

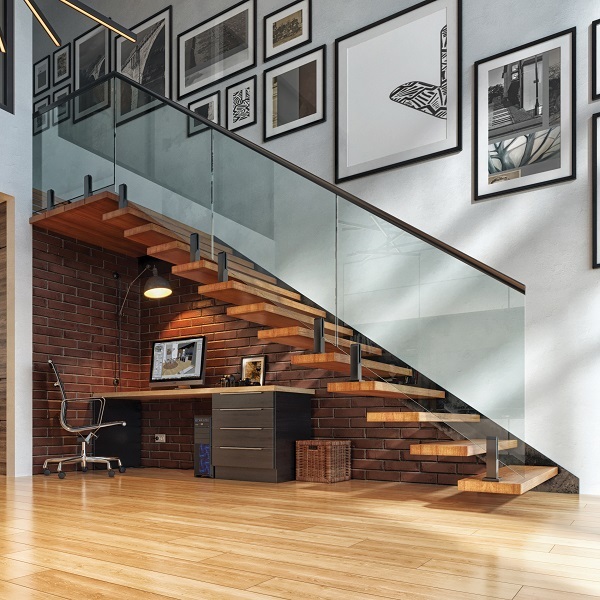

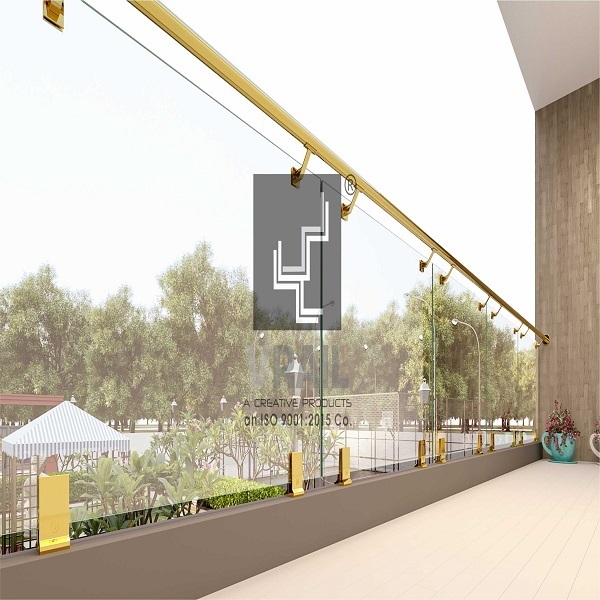

Residential buildings, balconies, staircases, commercial complexes, outdoor & indoor fencing

Dimension (L*W*H)
Customizable as per requirement

Weight
Depends on dimensions and configuration

Color
Silver

Material Grade
304, 316

Finish Type
Mirror or Satin Brushed

Usage
Handrail, guard rail, fencing, decorative partition

Lead Time
730 days depending on order quantity and customization

Packaging
Protective film wrapped, carton or wooden box packing

Customization
Design, shape, finish, size can be customized

Installation Method
Welded or Modular (bolted) as per site requirements

Fire Resistance
Non-combustible

Environmental Impact
Eco-friendly, 100% recyclable material

UV Resistance
Yes

Resistance to Chemicals
Excellent, especially in 316 grade for marine & saline environments

Application Temperature Range
-196C to 870C (304); -196C to 925C (316)

Design Options
Available in modern or classic styles

Maintenance
Low maintenance, easy to clean

Accessories Included
End caps, base plates, elbows, brackets, fasteners (as per design)

About 304/316 Grade Stainless Steel Railing

We VRail, Manufacturing Wide Range of Stainless Steel Railing, Glass Railing and Its Fittings. we have standard Grade for Stainless Steel SS304 and SS316, Its beautify your place with modular type railing Fittings with various finish options like Matt Finish, Glossy, Powder Coating, PVD Finish, Wooden Finish, Anodised Finish. Its Applicable for your residential House, Villas, Airports, Shopping Mall, Appartments and Many others.

High Durability and Versatility

Constructed from 304 or marine-grade 316 stainless steel, these railings combine excellent tensile strength, high corrosion and chemical resistance, and a non-combustible profile. Theyre ideal for applications ranging from balconies and staircases to fencing in both residential and commercial settings, enduring harsh environments including marine and saline areas.

Flexible Installation and Design

The system accommodates both welded and modular (bolted) installation methods to suit site-specific requirements. Design options include modern or classic styles, with customizable shape, finish, and size to match any project. A variety of polished, mirror, and satin brushed finishes are available to enhance aesthetic appeal.

Environmentally Friendly and Easy to Maintain

Produced with predominantly iron, chromium, and nickel, these stainless steel railings are 100% recyclable, making them an eco-friendly choice. Their low-maintenance nature and easy-to-clean surfaces ensure long-lasting performance while reducing time and cost for upkeep.

FAQs of 304/316 Grade Stainless Steel Railing:

Q: How are 304/316 Grade Stainless Steel Railings installed at the site?

A: Installation can be tailored to your project using either welded or modular (bolted) methods, depending on site requirements. All necessary accessories like end caps, base plates, elbows, brackets, and fasteners are included as per the selected design.

Q: What are the key differences between 304 and 316 grade stainless steel?

A: 304 grade is suitable for most indoor and outdoor environments, while 316 grade, with added molybdenum, provides superior resistance to chemicals, saltwater, and marine environments. Both types offer high tensile strength and excellent weather durability.

Q: When should I choose welded over modular (bolted) installation methods?

A: Welded installation is ideal for permanent, seamless applications and enhanced strength, whereas modular (bolted) systems offer flexibility for easy assembly, modification, or relocation according to project demands.

Q: Where can these stainless steel railings be used?

A: These railings are suitable for residential buildings, balconies, commercial complexes, staircases, both indoor and outdoor fencing, and decorative partitions, thanks to their customizable design and robust construction.

Q: What maintenance is required for stainless steel railings?

A: Stainless steel railings require minimal upkeep; regular cleaning with mild detergent and water is sufficient. Their surfaces resist staining, making them easy to maintain and ideal for high-traffic or coastal areas.

Q: How do these railings benefit my project in terms of environmental impact?

A: They are eco-friendly and 100% recyclable, made from sustainable materials, which helps reduce the environmental footprint of your building or facility.
