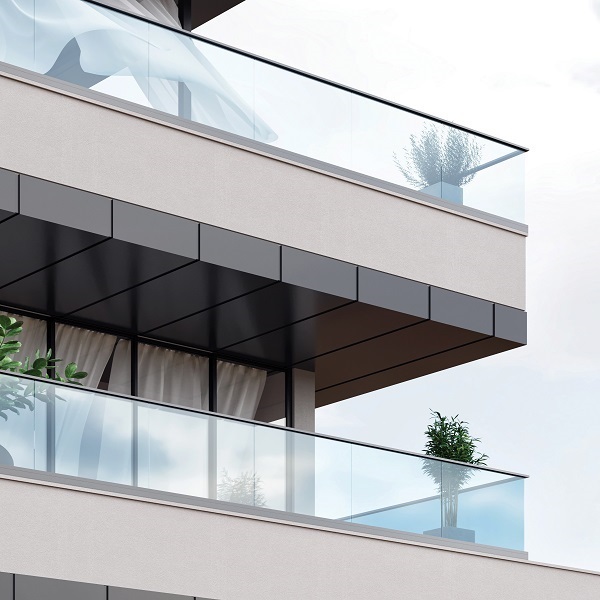

Frameless Glass Deck SS & AluminiumRailings

Price 1050 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Frameless Glass Deck SS & AluminiumRailings Specification

Heat Resistance
Yes

Product Form
Prefabricated modular system

Diameter
Hand rail diameter: 38 mm - 50 mm

Size
Customizable length and height (typ. height 9001200 mm)

Tensile Strength
SS: 515620 MPa; Aluminium: 200250 MPa

Recyclable
Yes, both glass and metal components

Coating Type
Anodized/Powder Coated (Aluminium), Polished (SS)

Hardness
SS: 7090 HRB; Aluminium: 6090 HB

Material Composition %
SS: 18% Cr, 8% Ni; Aluminium: 97-99%

Corrosion Resistant
Yes, high corrosion resistance in outdoor conditions

Product Name
Frameless Glass Deck SS & Aluminium Railings

Steel Type
Stainless Steel (SS304/SS316) and Aluminium

Steel Product Type
Railings (Hand Rail, Balustrade)

Grade
SS 304/316, Aluminium 6063-T5

Thickness
Glass: 12 mm to 15 mm (Tempered), SS/Aluminium: 1.5 mm - 2 mm

Shape
Rectangular frame with straight/linear or curved designs

Steel Standard
ASTM A240/AISI, EN, IS standards

Surface
Polished / Brushed / Anodized / Powder-coated

Composition
SS: Iron, Chromium, Nickel; Aluminium: Aluminium Alloy

Application
Decks, balconies, staircases, patios, terraces

Dimension (L*W*H)
Customizable as per site requirements

Weight
Depends on glass thickness and railing length

Color
Clear Glass with Satin, Silver, Matte, Glossy or Customized finishes

Material Grade
SS 304, SS 316, Aluminium 6063-T5 grade

Finish Type
Glossy, Brushed Satin, or Customized

Usage
Residential and commercial properties

Glass Type
Tempered safety glass

Fitting Type
SS/Aluminium spigots, brackets, clamps

Installation
Professional installation required

Glass Edge Type
Polished, beveled or flat edge

Mounting Type
Floor mount, side mount, or embedded base channel

Child Safety
Yes, no climbable members

Visibility
100% unobstructed view (frameless design)

Glass Certification
Meets IS/BS/ASTM glass safety standards

Glass Height Range
900 mm 1200 mm above finished floor level

Load Bearing Capacity
Up to 1.5 kN/m (typically as per codes)

Wind Load Resistance
Engineered for high wind zones

UV Resistance
Yes, suitable for outdoor use

Maintenance
Low maintenance, easy cleaning

Baluster Type
No vertical baluster frameless look

About Frameless Glass Deck SS & AluminiumRailings

We VRail, Manufacturing Wide Range of Stainless Steel Railing, Glass Railing and Its Fittings. we have standard Grade for Stainless Steel SS304 and SS316, Its beautify your place with modular type railing Fittings with various finish options like Matt Finish, Glossy, Powder Coating, PVD Finish, Wooden Finish, Anodised Finish. Its Applicable for your residential House, Villas, Airports, Shopping Mall, Appartments and Many others.

Frameless Elegance and Uninterrupted Views

Enjoy clear, panoramic vistas with frameless glass deck railings, meticulously engineered to provide maximum visibility without vertical balusters. The precision-crafted tempered glass and polished or anodized SS/Aluminium fixtures ensure both style and strength, suiting contemporary aesthetics for any property type.

Superior Safety and Durability Standards

Certified to meet IS/BS/ASTM standards, these railings are designed for high wind loads and robust load-bearing performance up to 1.5 kN/m. Child safety is prioritized-no climbable members are present, and the tempered glass is thoroughly tested for impact resistance and security.

Low Maintenance and Easy Cleaning

Thanks to premium corrosion-resistant metals and high-quality tempered glass, maintaining these railings is effortless. The smooth, non-porous surfaces resist stains and are easily cleaned, ensuring long-lasting clarity and brilliance with minimal upkeep, even in challenging outdoor conditions.

FAQ's of Frameless Glass Deck SS & AluminiumRailings:

Q: How is the Frameless Glass Deck SS & Aluminium Railing installed?

A: This railing system requires professional installation for optimum safety and finish. It can be floor-mounted, side-mounted, or installed in an embedded base channel, using SS or Aluminium spigots, brackets, and clamps. After-site assessment, components are securely anchored according to engineering specifications.

Q: What types of glass and edge finishes are available for this railing system?

A: The railings use 12 mm to 15 mm tempered safety glass with options for polished, beveled, or flat edges. This ensures both a refined appearance and reliable impact resistance suitable for outdoor installation.

Q: Where can Frameless Glass Deck SS & Aluminium Railings be used?

A: These modular railing systems are recommended for decks, balconies, staircases, patios, terraces, and any similar platform in both residential and commercial environments. Custom sizes are available to suit your project's specific dimensions and requirements.

Q: What are the benefits of a frameless railing design versus traditional baluster-style railings?

A: Frameless railings deliver a 100% unobstructed view, enhancing both the visual appeal and property value. With no vertical balusters, cleaning and maintenance are simplified, and the design prevents climbing, making it safer for children.

Q: How do these railings perform in outdoor or harsh weather conditions?

A: Composed of SS 304/316 or Aluminium 6063-T5 with UV-resistant coatings, these railings are highly resistant to corrosion, discoloration, and wind loading, making them ideal for Indian climates-from coastal to high-wind zones.

Q: What safety certifications and load standards do the products meet?

A: All glass components adhere to IS, BS, and ASTM safety standards, and the railing system is engineered for wind loads and load-bearing up to 1.5 kN/m, ensuring secure, code-compliant installations.

Q: Are the materials of the railing system recyclable or environmentally friendly?

A: Yes, both the tempered safety glass and metal components-stainless steel and aluminium-are fully recyclable, supporting sustainable building practices.
